X120 fixed
| Certified since | 09 Marzo 2020 |
| Climate zone | Freddo, temperato |
| Tipo | Fixed |
| Efficiency Class | phA |
| Material | GFRP |
| UW | 0,77 W/(m2K) |
| Open type |
Descrizione

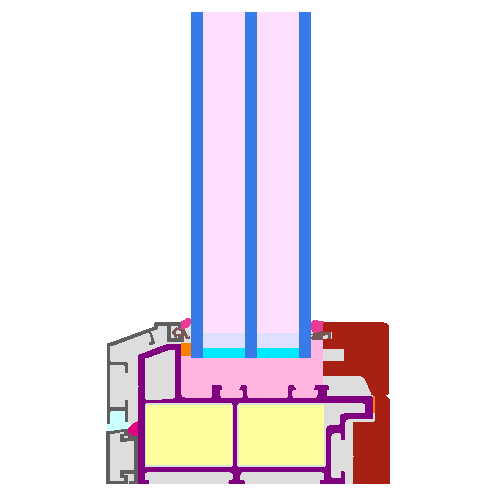

GFRP-Frame for fixed glazing with interior hard wood application and exterior aluminium cladding. Insulated by phenolic foam, 0.022 W/(mK). GFRP with PU resin, 2200 kg/m³, 0.34 W/(mK) (preliminary value to be validated). Pane thickness: 51 mm (5/18/5/18/5), rebate depth: 15 mm. Spacer: Multitech G with polyurethane as secondary seal.
| Nome | Frame width | U-Value | Ψ-Value | Frsi-Value |
|---|---|---|---|---|
| Mullion Fixed | 96 mm | 0,64 W/(m²K) | 0,028 W/(mK) | 0,740 |
| Bottom Fixed | 69 mm | 0,67 W/(m²K) | 0,028 W/(mK) | 0,740 |
| Top fixed | 69 mm | 0,68 W/(m²K) | 0,028 W/(mK) | 0,730 |
| Lateral fixed | 69 mm | 0,68 W/(m²K) | 0,028 W/(mK) | 0,730 |
