uni_verso55ATG
| Certified since | 11 Martie 2026 |
| Climate zone | Warm, temperate |
| Type | Operable |
| Sub type | |
| Efficiency class | phB |
| Material | Timber / aluminium |
| UW | 1.00 W/(m2K) |
| Open type | Inward opening |
Description
Timber frame (0.134 W/(mK)) with aluminium-facing shell with polyethylene foam insulation (0.038 W/(mK)) at the rebate. Pane thickness: 48 mm (4/18/4/18/4), rebate depth: 14 mm.
| Name | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

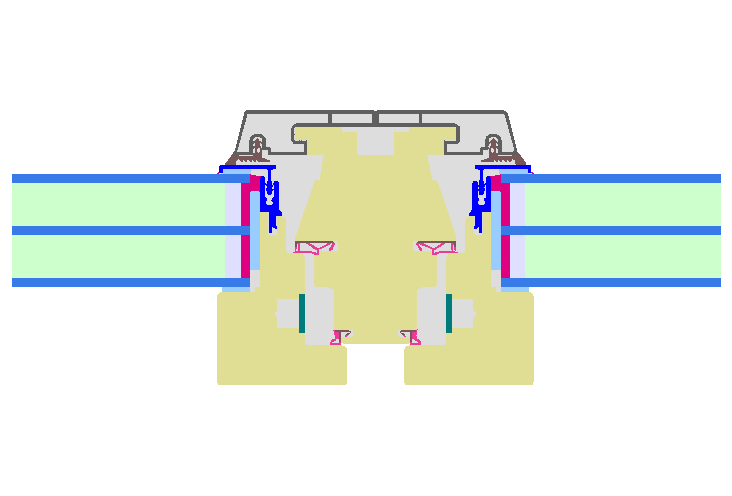

| Mullion 2 casements | 134 mm | 1,08 W/(m²K) | 0,023 W/(mK) | 0,68 |

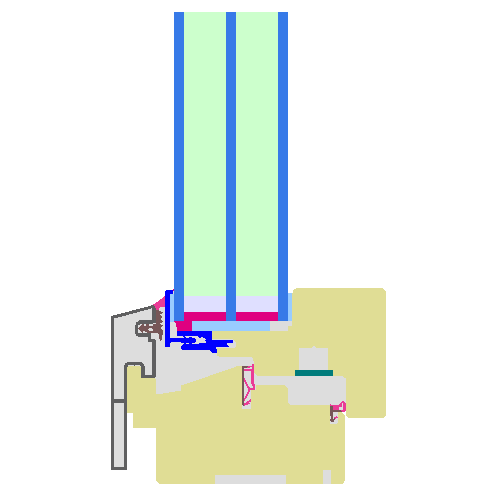

| Bottom | 83 mm | 1,15 W/(m²K) | 0,023 W/(mK) | 0,67 |

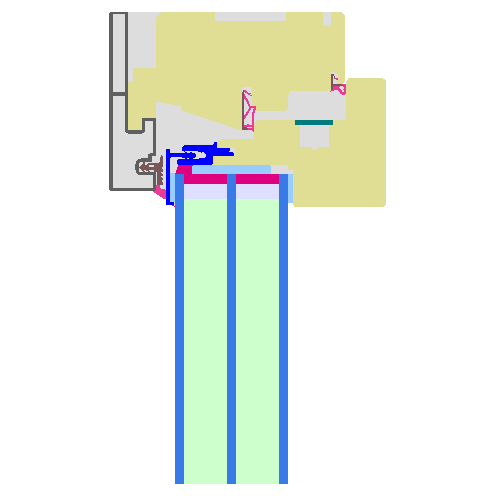

| Head | 83 mm | 1,07 W/(m²K) | 0,023 W/(mK) | 0,68 |
| Jamb | 83 mm | 1,07 W/(m²K) | 0,023 W/(mK) | 0,68 |
