Component Database


Ventilation system (capacity > 600 m3/h)

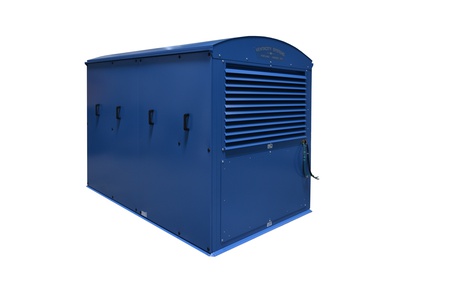

VS3000 RT

Component id: 1162vl03
Manufacturer: Ventacity Systems, Inc.
Air flow range from… : 1500 m3/h
To… : 2670 m3/h
At external pressure: 286 Pa
Heat recovery rate: 85% 
Humidity recovery: 0% 
Available external pressure (with installed filters): 234 Pa
Sound level of unit: 71.5 dB(A)
Climate zones: Cool, temperate

Acoustic duct

Outdoor air: 59.5 dB(A)
Supply air: 68.7 dB(A)
Extract air: 57.4 dB(A)
Exhaust air: 65.8 dB(A)
