| 组件id: | 0497wi03 |
|---|---|
| 制造商: | Munster Joinery |
| 类别: | 可打开 |
| 材料: | PVC |
| UW: | 0.75 W/(m2 K) |
| 能效阶级: | phB |
| 空间: | SWISSPACER ULTIMATE |
| 气候区: | 冷,温度 |
| 描述: | Vinylframe, partly insulated cavities with PU-foam (0.028 W/mK). Pane thickness: 52 mm (4/20/4/20/4), Rebate depth: 17 mm. |
| Certified since: | 2013年3月4日 |
| 边宽缩减 | 边宽高度 bf mm |
Frame U-value Uf W/(m2 K) |
Glass edge Ψ-value Ψg W/(m K) |
温度因素 fRsi = 0.25 m2K/W |
|---|---|---|---|---|
| 立柱1 | 121 | 0.70 | 0.027 | 0.76 |
| 下横框 | 125 | 0.65 | 0.027 | 0.76 |

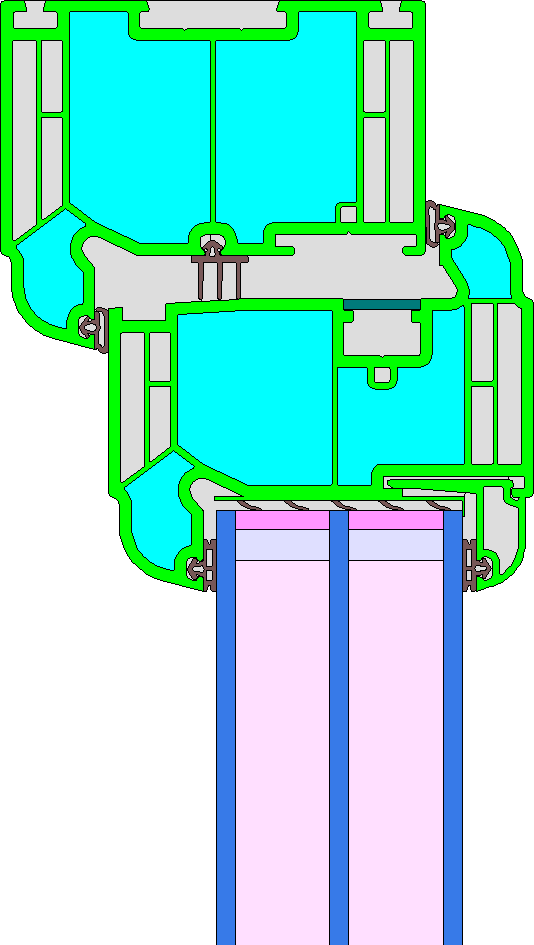

| 上横框 | 125 | 0.65 | 0.027 | 0.76 |

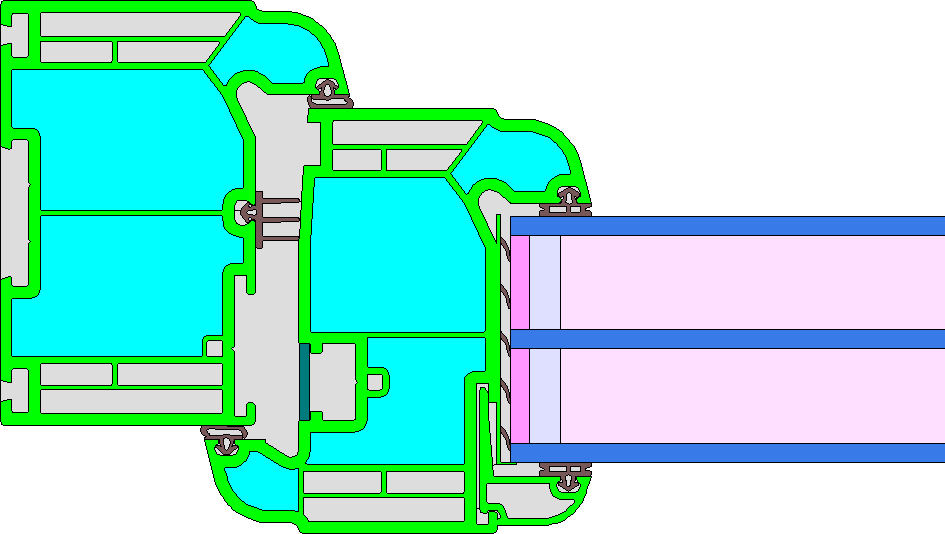

| 侧面 | 125 | 0.65 | 0.027 | 0.76 |
Installation situation |
||
|
|
UW, 装置 = ? W/(m2 K) |
|
| m m m | ||||||||||||||
|
|
|||||||||||||
|
UW = ? W/(m2 K) |
