2464wi04 Inova 76 mm: (Practicable)
2464wi04 Inova 76 mm: (Practicable)
2464wi04 Inova 76 mm: (Practicable): FM1
2464wi04 Inova 76 mm: (Practicable): OB1
2464wi04 Inova 76 mm: (Practicable): OH1
2464wi04 Inova 76 mm: (Practicable): OJ1
Inova 76 mm
| Certificado desde | 21 de mayo de 2025 |
| Zona climática | Cálida templada |
| Tipo | Practicable |
| Subtipo | |
| Clase de eficiencia | phC |
| Material | PVC |
| UW | 0,99 W/(m2K) |
| Tipo de apertura |
Descripción
PVC window frame reinforced with steel in both the frame and the sash. Pane thickness: 44 mm (4/16/4/16/4), rebate depth: 23 mm. Pane thickness: 44 mm (4/16/4/16/4), rebate depth: 23 mm. Spacer: SWISSPACER Ultimate with butyl as secondary seal.
| Nombre | Ancho de marco | Valor U | Valor Ψ | Valor fRsi |
|---|---|---|---|---|

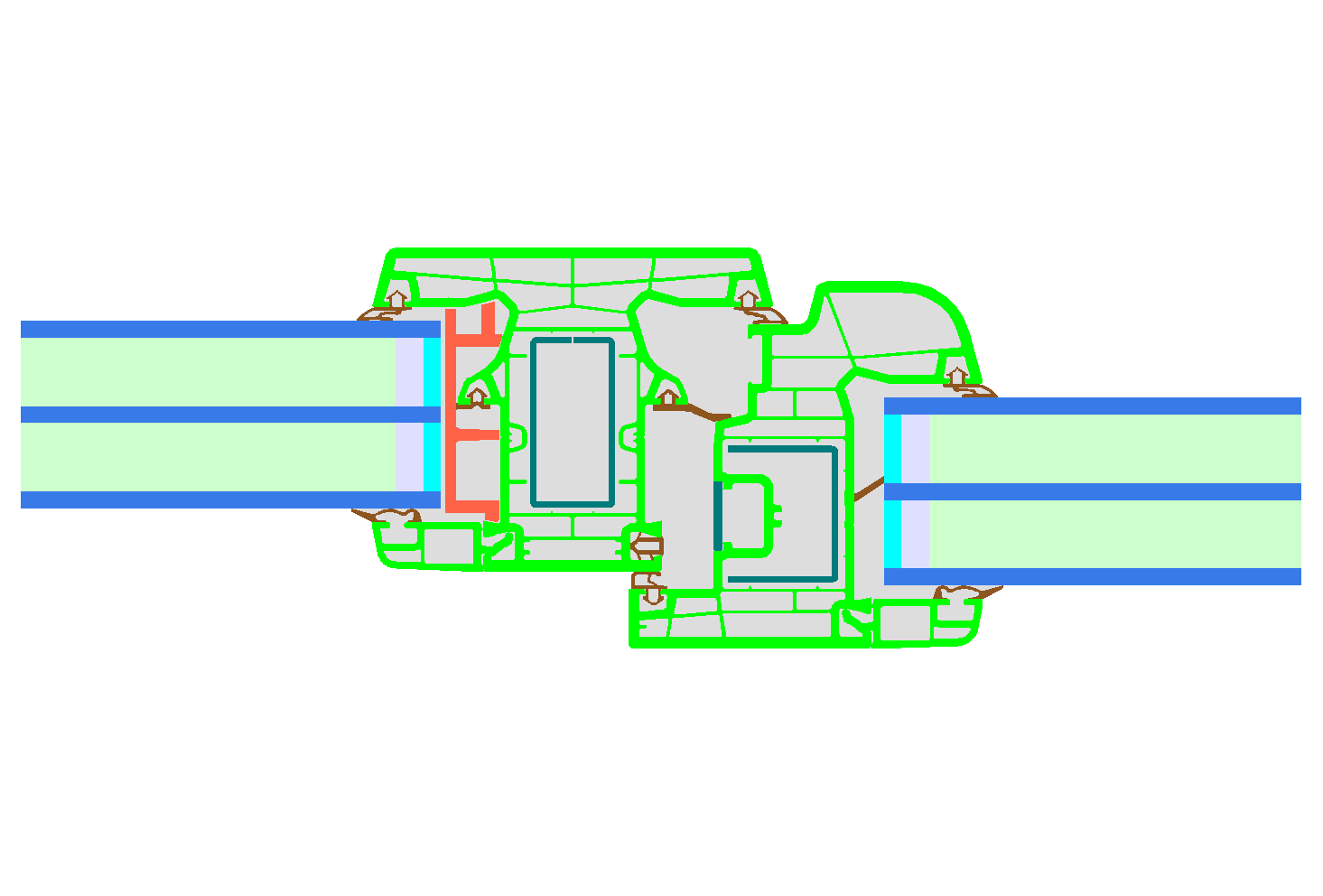

| Flying Mullion | 143 mm | 1,09 W/(m²K) | 0,022 W/(mK) | 0,690 |

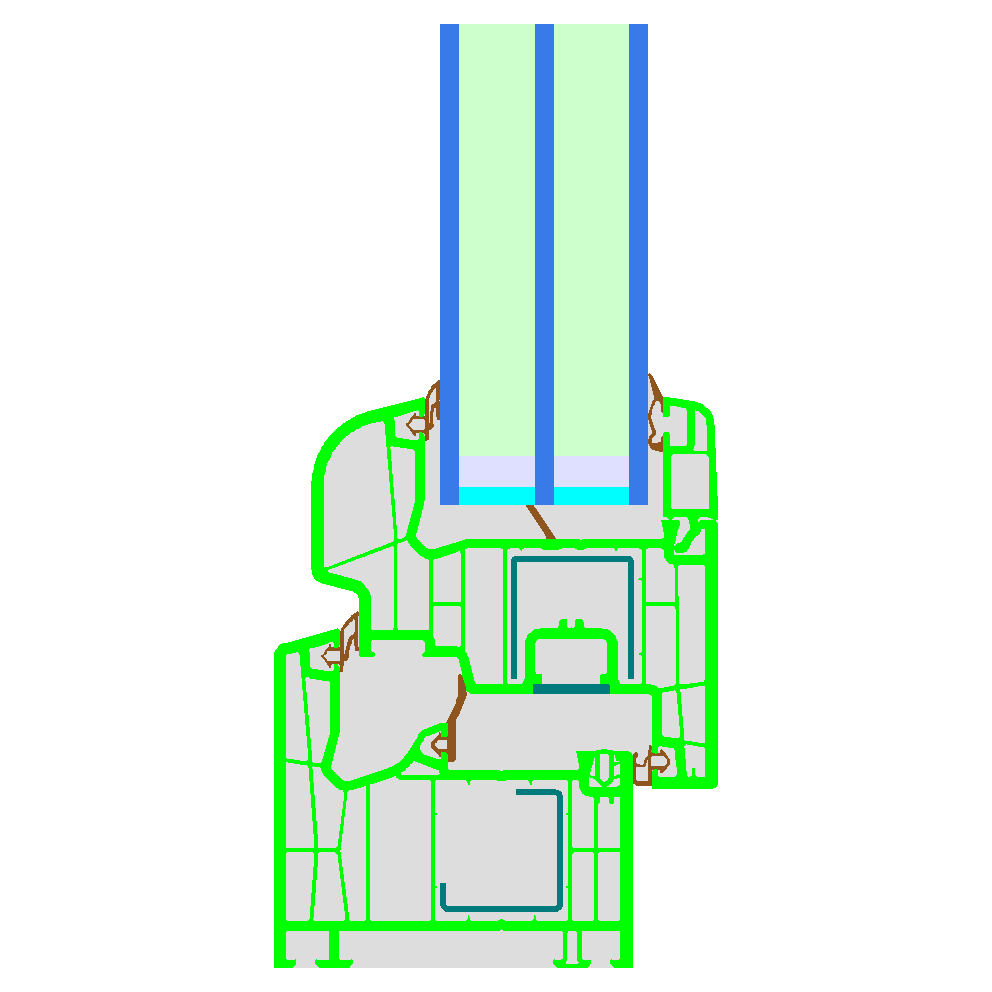

| Bottom | 121 mm | 1,02 W/(m²K) | 0,023 W/(mK) | 0,710 |

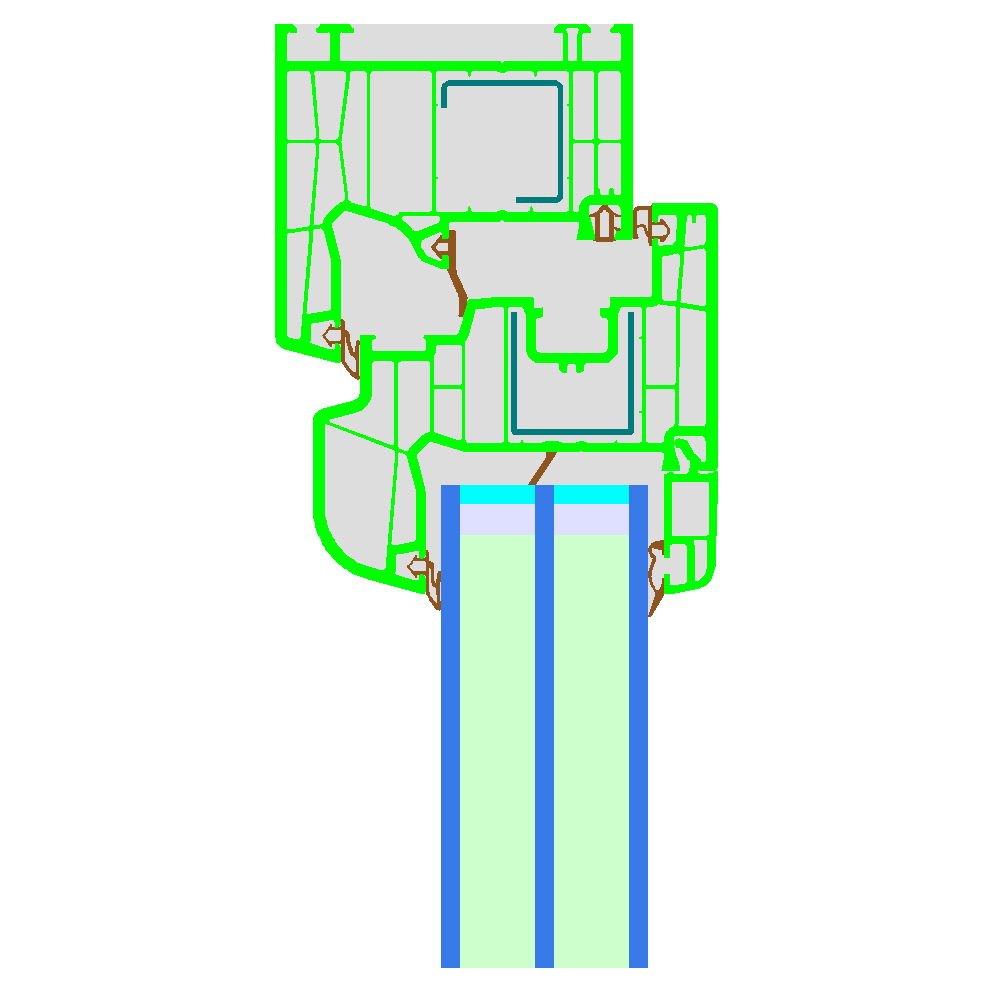

| Head | 121 mm | 1,02 W/(m²K) | 0,022 W/(mK) | 0,710 |

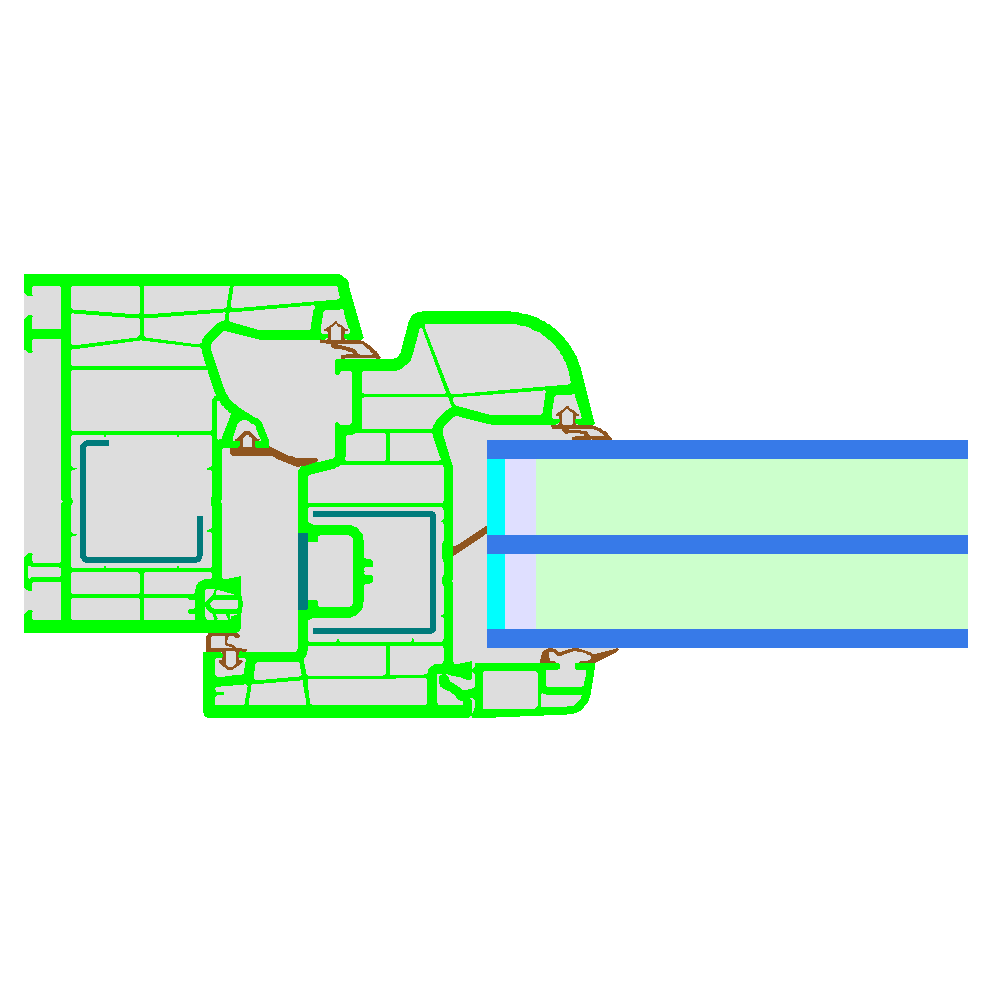

| Jamb | 121 mm | 1,02 W/(m²K) | 0,022 W/(mK) | 0,710 |
