Standard Arctic
| Certified since | 2019年12月17日 |
| 气候区 | 冷,温度 |
| Surface material | 木材 |
| Door type | 门系统 |
| 如何开启 | 内部 |
| UW | 0.76 W/(m2K) |
描述

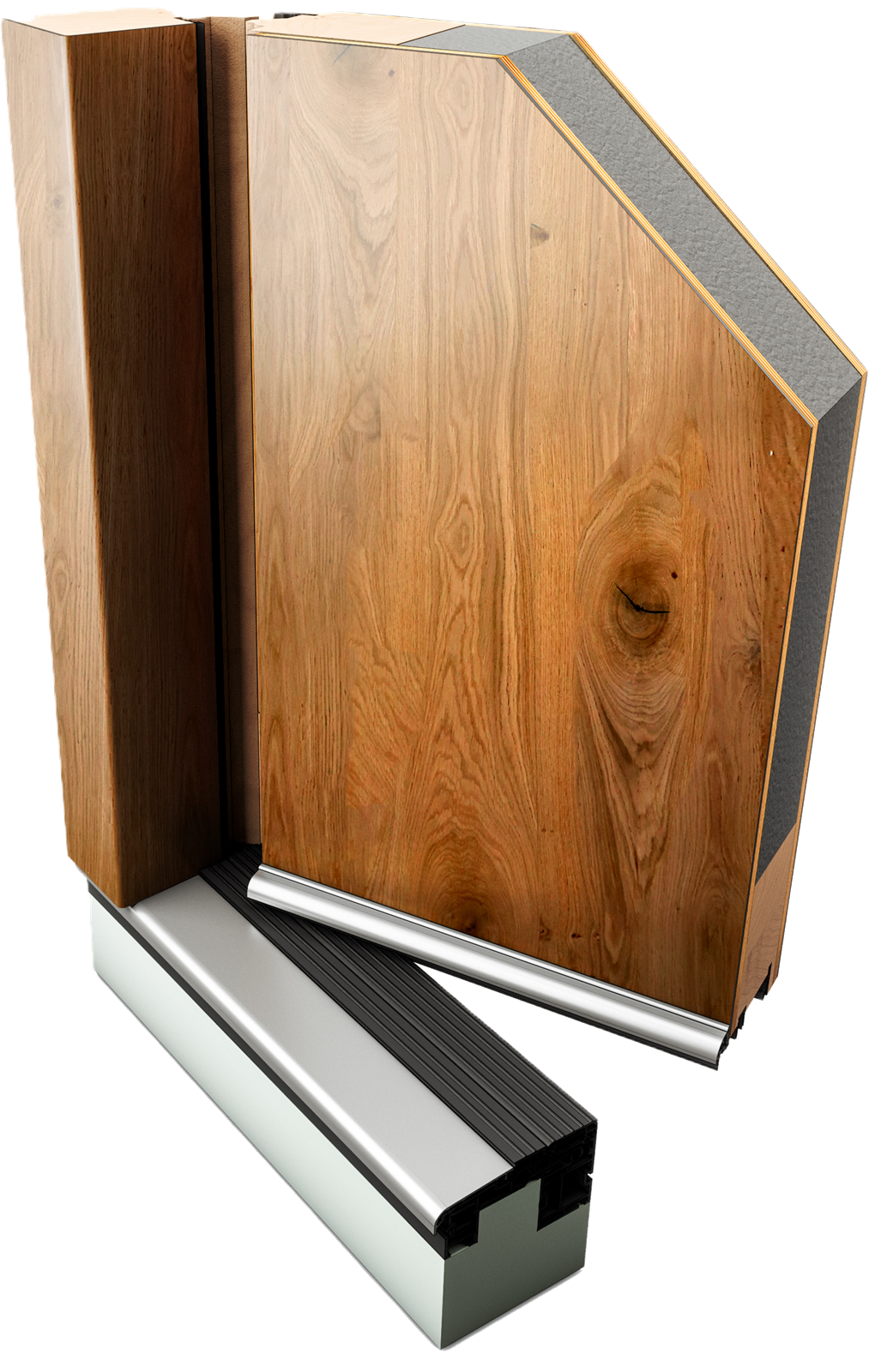

Timber doorset (pine, 0,13 W/(mK)) insulated with PIR (Corafoam HPT 35, 0,022 W/(mK); 25% surcharge added to declared value = 0,028 W/(mK)). Sidelights (4/24/4/24/12) and glass door filling (4/27/10/27/10) use Ug = 0,50 W/(m²K) with SWISSPACER Ultimate and polysulfide secondary seal. The required temperature factor at the locking side is not met, nevertheless, these values are much better than usual. Beyond the requirements, airtightness class 3 according to EN 12207 is achieved.
| 名子 | 边宽高度 | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|
| 立柱1 | 193 mm | 1.35 W/(m²K) | 0.016 W/(mK) | 0.652 |
| 立柱1 | 162 mm | 1.35 W/(m²K) | 0.016 W/(mK) | 0.709 |
| 门枢纽边 | 140 mm | 1.39 W/(m²K) | 0.002 W/(mK) | 0.700 |
| 门上锁于外边 | 170 mm | 1.39 W/(m²K) | 0.002 W/(mK) | 0.640 |
| 下横框固定 | 97 mm | 1.22 W/(m²K) | 0.031 W/(mK) | 0.722 |
| 上横框固定 | 65 mm | 1.03 W/(m²K) | 0.029 W/(mK) | 0.756 |
| 侧柱 | 65 mm | 1.03 W/(m²K) | 0.024 W/(mK) | 0.742 |
| 上横框 | 127 mm | 1.12 W/(m²K) | 0.001 W/(mK) | 0.710 |
| 门槛 | 142 mm | 1.26 W/(m²K) | 0.001 W/(mK) | 0.700 |
